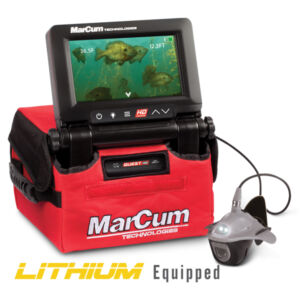

MarCum® Quest HD L Lithium Equipped Underwater Viewing System

$699.99

The Quest HD L allows you to explore the underwater world in razor-sharp, high-definition detail. A full 1080p camera paired with MarCum’s exclusive relative direction, depth, and temperature readings join to create a superior viewing system.  Scan the depths with power to spare, thanks to the MarCum Brute 12V10AH Lithium LiFePO4 battery and charger. Combine these features with the brightest screen MarCum has ever produced plus 75 feet of camera cable, and the Quest HD L delivers the most optically advanced underwater viewing experience ever devised.



In stock

SKU: 850013782185.
Categories: , .

VIDEO

PRODUCT INFORMATION

The Quest HD L allows you to explore the underwater world in razor-sharp, high-definition detail. A full 1080p camera paired with MarCum’s exclusive relative direction, depth, and temperature readings join to create a superior viewing system.  Scan the depths with power to spare, thanks to the MarCum Brute 12V10AH Lithium LiFePO4 battery and charger. Combine these features with the brightest screen MarCum has ever produced plus 75 feet of camera cable, and the Quest HD L delivers the most optically advanced underwater viewing experience ever devised.

TECH SPECS

MODEL NO. Quest HD L
DISPLAY 7″ Widescreen Flat Panel
Hi-Res Color LCD
3x Brighter Pixels
Resolution 800 x 480 Pixels
Camera 1920 x 1080p Sensor
Dark Water LED Lighting
90° Field of View
Color Kill
Cable 75 ft. Camera Cable
On Screen Display Depth of Camera
Camera Direction
Water Temperature
Battery Status
Additional Features Adjustable Brightness, Contrast, and Sharpness
Switchable Color & B/W
HDMI Video Out
Snow/Sun shield
Camera & Cable Storage

BATTERY

MODEL NO. LP41210
BATTERY TYPE Lithium Iron Phosphate (LiFePO4)
VOLTAGE 12.8 Vd.c.
AMP. HOURS 10 AH
WATT-HOURS 128
MAX CHARGE CURRENT 10-amps
PEAK DISCHARGE 10-amps
TERMINALS Standard F2 Spade Terminals (6.4mm or 0.25” wide)
LIFECYCLES 2000 Full charge cycles
OPERATING TEMPERATURE -29°C to +49°C
CHARGING TEMPERATURE 0°C to +45°C (Do not charge a frozen battery)
BMS PROTECTION

Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.

ESTIMATED RUNTIME* 11 Hours Depending on Conditions
SIZE 5-7/8″ x 2-1/2″ x 3-5/8″ Replaces Standard Lead Acid Battery
WEIGHT 2 lbs. 11oz.

*Runtime estimates are based on power usage with factory default settings. Changes in user settings like screen brightness can have a major impact on power draw and therefore runtimes. MarCum Technologies offer these estimates to aid in determining the size battery you need to meet your use case.

WEIGHT & DIMS

PHYSICAL DIMENSIONS 10″ x 10″ x 7.5″
WEIGHT 10.2 lbs.

IN THE BOX

BATTERY  Rechargeable 12-volt 10-amp Lithium LiFePO4 Battery
CHARGER 3-Stage Automatic Charger
STORAGE Deluxe Padded Red Soft Pack
ACCESSORIES Snow/Sun Shield
Down-view Stabilizer Fin
WARRANTY One Year System Warranty

MANUAL - ENGLISH

Manual for the MarCum Quest HD L Underwater Viewing System
Download for Free! Click on link Quest HD L Manual

MANUAL - FRENCH

Manuel en français pour le système MarCum Quest HD L Systéme de Visualisation
Télécharger gratuitement! Cliquez sur le lien Quest HD L French Manual

SAFETY

BMS Protection

Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.

Warnings

  • Do not immerse the battery in water or sea water. Keep the battery in a cool dry place when not in use.
  • Do not use or leave the battery near a heat source (i.e. heater, furnace, fire).
  • Use the battery charger only as directed when recharging.
  • Do not reverse the positive and negative terminals on the battery connections.
  • Do not discard the battery in a fire, furnace, or other combustible space.
  • Do not connect the battery directly to an electrical outlet.
  • Do not short –circuit the battery by directly connecting the positive and negative terminals with metal objects.
  • Do not directly solder the battery or pierce the battery with a nail or other sharp objects.
  • If the battery gives off an odor, generates heat, becomes discolored or in any way appears abnormal during use, or while charging or discharging, immediately stop using it.
  • If the battery leaks and the battery contents (electrolyte) gets into an eye, do not rub the eye. Instead, flush the eye(s) with clean water and immediately seek medical attention or it may result in injury to the eye(s).
  • Do not use the battery in a location where static electricity or magnetic fields are great or it may result in damage to the battery safety devices.
  • Do not leave the battery in high temperatures (i.e. in direct sunlight or in a vehicle in extremely hot weather) or it may overheat, and its performance will be degraded, and service life decreased.
  • Tape the battery terminals prior to disposal to insulate them as discarded batteries may cause fire or explosion.
  • Follow manufacturers instructions.
  • Do not charge a frozen battery.
  • Charging Temperature: 0°C to +45°C.
