LX-7 Digital Sonar System 8″ LCD Dual Beam – Discontinued
$529.96
This product has been replaced with the LX-7L
From the ice age to the digital age, MarCum’s vanguard LX-7 has forever transformed the game of hunting fish on frozen water. Over a decade of cutting edge sonar design in the making, the radically innovative LX-7 has been built with the optimum blend of sonar DNA from MarCum LX Flasher and Digital Fish Finding technologies. A true breakthrough in “big picture” ice sonar, LX-7 presents anglers with an incredible interactive ice fishing experience in a panoramic 8-inch LCD environment.
Out of stock
PRODUCT INFORMATION
From the ice age to the digital age, MarCum’s vanguard LX-7 has forever transformed the game of hunting fish on frozen water. Over a decade of cutting edge sonar design in the making, the radically innovative LX-7 has been built with the optimum blend of sonar DNA from MarCum LX Flasher and Digital Fish Finding technologies. A true breakthrough in “big picture” ice sonar, LX-7 presents anglers with an incredible interactive ice fishing experience in a panoramic 8-inch LCD environment (four vividly rich color palettes included.) Multiple industry-exclusive features provide a dazzling array of precious fish-finding Intel. Fully user-defined on-screen “Dashboard” displays digital depth, battery voltage, range, gain, interference rejection (IR), target adjust, or any combination thereof. LX-7’s “Multifaceted Sonar Display” also gives anglers fully customize window views, including water-column vertical, vertical zoom, flasher-dial and traditional horizontal LCD graph displays. Sonar Footprint technology displays scan area at any depth, with either 8° or 20° transducer cone angles. This provides a keen awareness of fish targets relative to the transducer, and your lure; also helps prevent adjacent (non-MarCum) sonar users from picking up interfering LX-7 pulses by avoiding the “footprint” area. All LX-7s come preloaded with the full menu of MarCum’s patented features, as well as a USB port for upgradability. Manufactured in the USA, the LX-7 has a padded softpack, rechargeable battery and battery charger, and it comes ready-to-fish straight from the box.
TECH SPECS
| MODEL NO. | LX-7 |
| DISPLAY | 8″ Flat Panel Color LCD 4 Color Palette Options |
| POWER | 4800 Watts Peak to Peak Output Power |
| CONE ANGLE | Dual Beam 8/20 Degree Ice Transducer |
| TARGET SEPARATION | Down to 1/2-Inch |
| INTERFERENCE REJECTION | Patented 12-Step Interference Rejection |
| ZOOM | Automatic Bottom Lock Selectable Zoom Windows – 5′, 10′, 20′, 40′ Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column) |
| CABLE | 8 ft. Transducer Cable |
| RESOLUTION | 800 x 600 Pixels |
| ON SCREEN DISPLAY | Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen |
| ADDITIONAL FEATURES | Exclusive Dynamic Depth/Range 300′ Dynamic Depth Capability Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Back-light |
WEIGHT & DIMS
| PHYSICAL DIMENSIONS | 11.25″x 11.25″x 11.25″ |
| WEIGHT | 11 lbs. |
IN THE BOX
| BATTERY | Rechargeable 12-volt 9-amp Lead Acid (SLA) Battery |
| CHARGER | 3- Stage Automatic Battery Charger |
| STORAGE | Deluxe Padded Red Soft Pack |
| WARRANTY | Two Year System Warranty |
MANUAL- ENGLISH
Manual for the MarCum LX-7 Digital Ice Sonar System
Download for Free! Click on link
LX-7 Manual
MANUAL- FRENCH

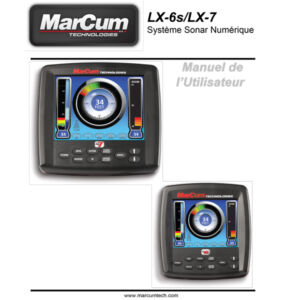

Manuel en français pour le système MarCum LX-7 Digital Ice Sonar
Télécharger gratuitement! Cliquez sur le lien
LX-6 & 7 Manuel en Français
SAFETY
Warnings
- Do not immerse the battery in water or sea water. Keep the battery in a cool dry place when not in use.
- Do not use or leave the battery near a heat source (i.e. heater, furnace, fire).
- Use the battery charger only as directed when recharging.
- Do not reverse the positive and negative terminals on the battery connections.
- Do not discard the battery in a fire, furnace, or other combustible space.
- Do not connect the battery directly to an electrical outlet.
- Do not short –circuit the battery by directly connecting the positive and negative terminals with metal objects.
- Do not directly solder the battery or pierce the battery with a nail or other sharp objects.
- If the battery gives off an odor, generates heat, becomes discolored or in any way appears abnormal during use, or while charging or discharging, immediately stop using it.
- If the battery leaks and the battery contents (electrolyte) gets into an eye, do not rub the eye. Instead, flush the eye(s) with clean water and immediately seek medical attention or it may result in injury to the eye(s).
- Do not use the battery in a location where static electricity or magnetic fields are great or it may result in damage to the battery safety devices.
- Do not leave the battery in high temperatures (i.e. in direct sunlight or in a vehicle in extremely hot weather) or it may overheat, and its performance will be degraded, and service life decreased.
- Tape the battery terminals prior to disposal to insulate them as discarded batteries may cause fire or explosion.
- Follow manufacturers instructions.
