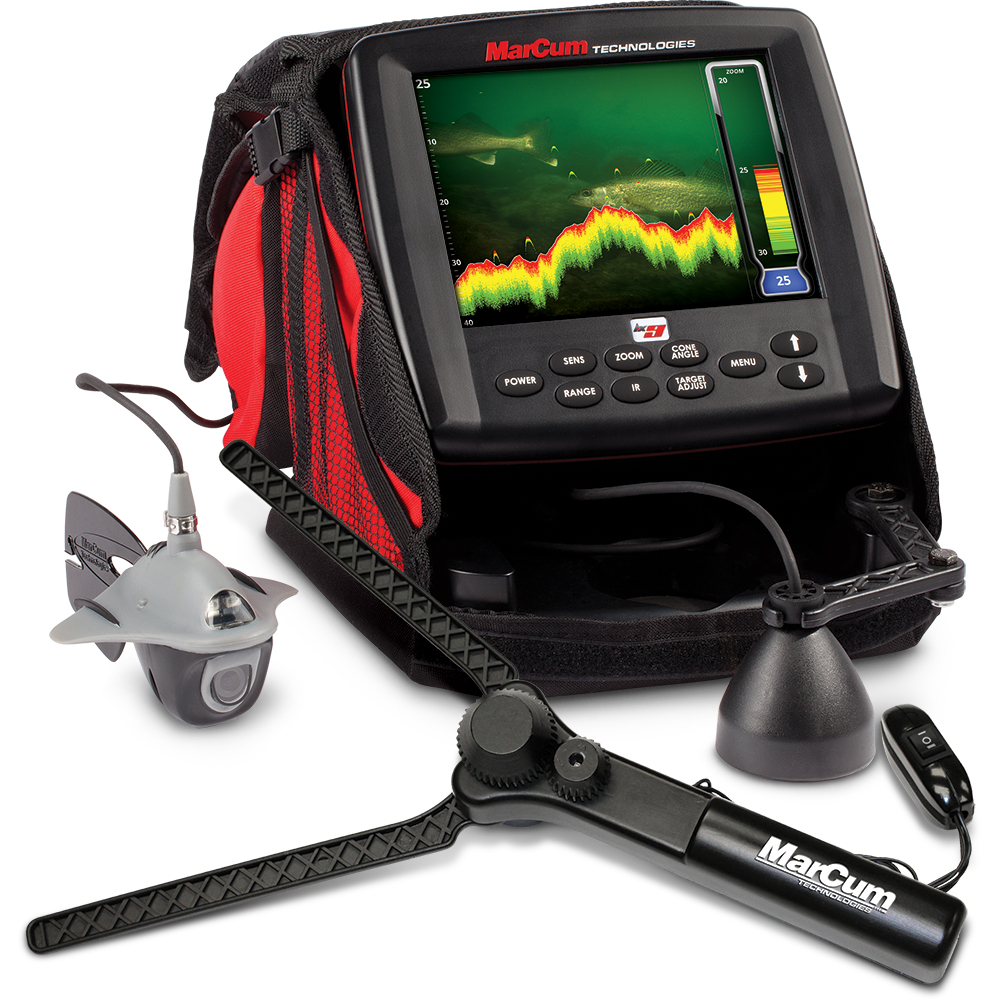

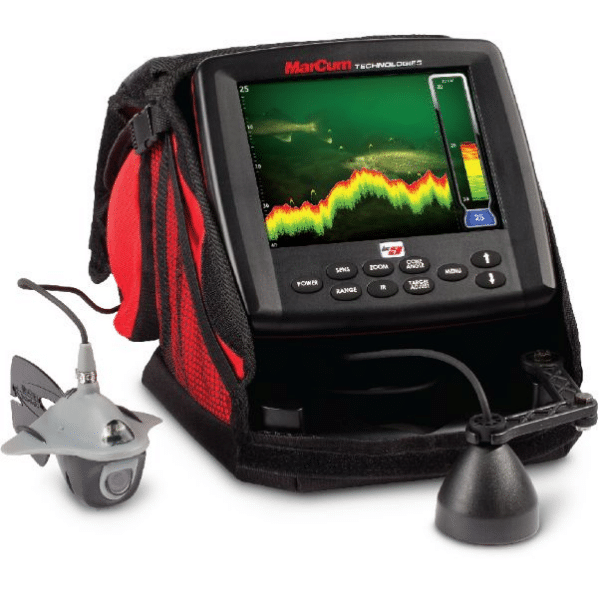

LX-9L Lithium Equipped Sonar/ Underwater Camera System

Name: LX-9L Lithium Equipped Sonar/ Underwater Camera System
SKU: 850013782055
Availability: InStock

$1,299.99

In stock

LX-9L Lithium Equipped Sonar/ Underwater Camera System quantity

SKU: 850013782055 Category: Digital Sonars Tags: Brute, Camera, Digital, LiFePO4, LX-9L, Marcum, Sonar

Additional information
WEIGHT & DIMS
PRODUCT INFORMATION
TECH SPECS
BATTERY
IN THE BOX
MANUAL - ENGLISH
MANUAL - FRENCH
SAFETY
REPLACEMENT PARTS
COMPATIBLE PRODUCTS

Additional information

Weight	15 lbs
Dimensions	12 × 12 × 12 in
ASIN	B08JD6GKBC
Brand	MarCum
Item Condition	New
Product Type	gpsornavigationsystem
Item Type	fish-finders
Product Tax Code	A_GEN_TAX
Shipping-Template-Amazon	Migrated Template
Intended Use	Outdoor
Intended Use 2	Entertainment
Target Audience	Consumer Audience
Warranty Description	Two Year System Warranty
Manufacturer	MarCum
Model Number	LX-9L
Mfr Part Number	LX-9L
GTIN	850013782055

WEIGHT & DIMS

PHYSICAL DIMENSIONS	11.25″ x 11.25″ x 11.25″
WEIGHT	10.5 lbs.

PRODUCT INFORMATION

Decades of advanced sonar engineering meet wicked underwater wizardry; virtual reality joins aquatic reality, and both live to tell their stories—all on the screen of the same high-powered device. The minds at MarCum Technologies unleash the new LX-9L LiFePO4—a totally dynamic sonar / underwater viewing experience you’ve got to see to believe. Now powered by the new Lithium LiFePO4 12volt 10-amp hour battery. Giving you more power to fish longer, and a 3-pound weight savings to make it lighter when you are out hole hopping. With a panoramic 8-inch split-screen enabled LCD, you can play the interactive ice fishing game in sonar and live action modes, simultaneously. Another MarCum Technologies breakthrough, the LX-9L LiFePO4 is the industry’s first sonar/underwater viewing system combo with an integrated digital video recorder (DVR). For the first time ever, anglers can compare sonar signals with live underwater video side-by-side, providing a “big picture” underwater analysis. Learn to read sonar like never before. Quickly distill pertinent structure, lure and fish details that yield potently effective fishing patterns. Plus, record what you see, upload your videos and let your hotspots go viral. The LX-9L LiFePO4 operates with all of MarCum’s patented, classic features plus its trademark digital fish-finding dominance. System includes an integrated switchable dual beam transducer alongside a high-resolution color camera with CMOS sensor and 75-feet of cable. Unit is easily transferable to a boat with use of an optional Open Water Transducer (sold separately). Abundant digital on-screen displays include camera depth, water temperature at surface and/or camera depth and relative camera direction. Advanced sonar feature list is immense, including user-defined Multifaceted Sonar Display and Dashboard, Sonar Footprint™ Technology and patented Infinitely Adjustable Zoom, Bottom Lock Zoom and Interference Rejection (IR). Includes MarCum’s Automatic Camera Panner and protective Snow Shield.

TECH SPECS

MODEL NO.	LX-9L
DISPLAY	8″ Flat Panel Color LCD 4 Color Palette Options
POWER	4800 Watts Peak to Peak Output Power
CONE ANGLE	Dual Beam 8/20 Degree Ice Transducer
TARGET SEPARATION	Down to 1/2-Inch
INTERFERENCE REJECTION	Patented 12 Step Interference Rejection
ZOOM	Automatic Bottom Lock Selectable Zoom Windows – 5′, 10′, 20′, 40′ Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column)
RESOLUTION	800 x 600 Pixels
CABLE	8 ft. Transducer Cable
CAMERA	Color or Black/White Switchable 1/3″ Sensor with a .01 Lux Dark Water LED Lighting 75 ft. Camera Cable
ON SCREEN DISPLAY	(HUD) Heads-Up Display Camera/Sonar Overlay Technology All Camera Functions Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen
ADDITIONAL FEATURES	300′ Dynamic Depth Capability, Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Bottom Enhance Capability Exclusive Dynamic Depth/Range Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Backlight Video Playback On-Screen

BATTERY

MODEL NO.	LP41210
BATTERY TYPE	Lithium Iron Phosphate (LiFePO4)
VOLTAGE	12.8 Vd.c.
AMP. HOURS	10 AH
WATT-HOURS	128
MAX CHARGE CURRENT	10-amps
PEAK DISCHARGE	10-amps
TERMINALS	Standard F2 Spade Terminals (6.4mm or 0.25” wide)
LIFECYCLES	2000 Full charge cycles
OPERATING TEMPERATURE	-29°C to +49°C
CHARGING TEMPERATURE	0°C to +45°C (Do not charge a frozen battery)
BMS PROTECTION	Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.
ESTIMATED RUNTIME*	13 Hours Depending on Conditions
SIZE	5-7/8″ x 2-1/2″ x 3-5/8″ Replaces Standard Lead Acid Battery
WEIGHT	2 lbs. 11oz.

*Runtime estimates are based on power usage with factory default settings. Changes in user settings like screen brightness can have a major impact on power draw and therefore runtimes. MarCum Technologies offer these estimates to aid in determining the size battery you need to meet your use case.

IN THE BOX

BATTERY	Rechargeable 12-volt 10-amp Lithium LiFePo4 Battery
CHARGER	3-amp Hour Rapid-Charge Battery Charger
STORAGE	Deluxe Padded Red Soft Pack Camera Pack
CAMERA EXTRAS	Remote Camera Panner microSD Card
SCREEN PROTECTION	Snow Shield Faceplate
WARRANTY	Two Year System Warranty

MANUAL - ENGLISH

Manual for the MarCum LX-9L Digital Sonar System
Download for Free! Click on link LX-9L Digital Sonar Manual

Quick Start Guide for LX-9L Digital Sonar System
Download for Free! Click on link LX-9L Digital Sonar System Quick Start Guide

MANUAL - FRENCH

Manuel en français pour le système MarCum LX-9L Ice Sonar
Télécharger gratuitement! Cliquez sur le lien LX-9L Manuel de l’utilisateur

SAFETY

BMS Protection

Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.

Warnings

Do not immerse the battery in water or sea water. Keep the battery in a cool dry place when not in use.
Do not use or leave the battery near a heat source (i.e. heater, furnace, fire).
Use the battery charger only as directed when recharging.
Do not reverse the positive and negative terminals on the battery connections.
Do not discard the battery in a fire, furnace, or other combustible space.
Do not connect the battery directly to an electrical outlet.
Do not short –circuit the battery by directly connecting the positive and negative terminals with metal objects.
Do not directly solder the battery or pierce the battery with a nail or other sharp objects.
If the battery gives off an odor, generates heat, becomes discolored or in any way appears abnormal during use, or while charging or discharging, immediately stop using it.
If the battery leaks and the battery contents (electrolyte) gets into an eye, do not rub the eye. Instead, flush the eye(s) with clean water and immediately seek medical attention or it may result in injury to the eye(s).
Do not use the battery in a location where static electricity or magnetic fields are great or it may result in damage to the battery safety devices.
Do not leave the battery in high temperatures (i.e. in direct sunlight or in a vehicle in extremely hot weather) or it may overheat, and its performance will be degraded, and service life decreased.
Tape the battery terminals prior to disposal to insulate them as discarded batteries may cause fire or explosion.
Follow manufacturers instructions.
Do not charge a frozen battery.
Charging Temperature: 0°C to +45°C.
