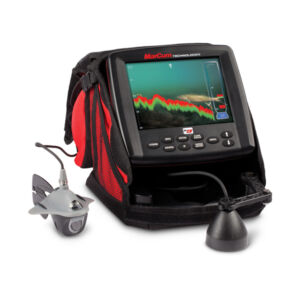

Decades of advanced sonar engineering meet wicked underwater wizardry; virtual reality joins aquatic reality, and both live to tell their stories—all on the screen of the same high-powered device. The minds at MarCum Technologies unleash the new LX-9L LiFePO4—a totally dynamic sonar / underwater viewing experience you’ve got to see to believe. Now powered by the new Lithium LiFePO4 12volt 10-amp hour battery. Giving you more power to fish longer, and a 3-pound weight savings to make it lighter when you are out hole hopping. With a panoramic 8-inch split-screen enabled LCD, you can play the interactive ice fishing game in sonar and live action modes, simultaneously. Another MarCum Technologies breakthrough, the LX-9L LiFePO4 is the industry’s first sonar/underwater viewing system combo with an integrated digital video recorder (DVR). For the first time ever, anglers can compare sonar signals with live underwater video side-by-side, providing a “big picture” underwater analysis. Learn to read sonar like never before. Quickly distill pertinent structure, lure and fish details that yield potently effective fishing patterns. Plus, record what you see, upload your videos and let your hotspots go viral. The LX-9L LiFePO4 operates with all of MarCum’s patented, classic features plus its trademark digital fish-finding dominance. System includes an integrated switchable dual beam transducer alongside a high-resolution color camera with CMOS sensor and 75-feet of cable. Unit is easily transferable to a boat with use of an optional Open Water Transducer (sold separately). Abundant digital on-screen displays include camera depth, water temperature at surface and/or camera depth and relative camera direction. Advanced sonar feature list is immense, including user-defined Multifaceted Sonar Display and Dashboard, Sonar Footprint™ Technology and patented Infinitely Adjustable Zoom, Bottom Lock Zoom and Interference Rejection (IR). Includes MarCum’s Automatic Camera Panner and protective Snow Shield.
Sonar features & Specifications
| MODEL NO. | LX-9L |
| DISPLAY | 8″ Flat Panel Color LCD 4 Color Palette Options |
| POWER | 4800 Watts Peak to Peak Output Power |
| CONE ANGLE | Dual Beam 8/20 Degree Ice Transducer |
| TARGET SEPARATION | Down to 1/2-Inch |
| INTERFERENCE REJECTION | Patented 12 Step Interference Rejection |
| ZOOM | Automatic Bottom Lock Selectable Zoom Windows – 5′, 10′, 20′, 40′ Patented Infinitely Adjustable Zoom (Zoom anywhere throughout the water column) |
| RESOLUTION | 800 x 600 Pixels |
| CABLE | 8 ft. Transducer Cable |
| CAMERA | Color or Black/White Switchable 1/3″ Sensor with a .01 Lux Dark Water LED Lighting 75 ft. Camera Cable |

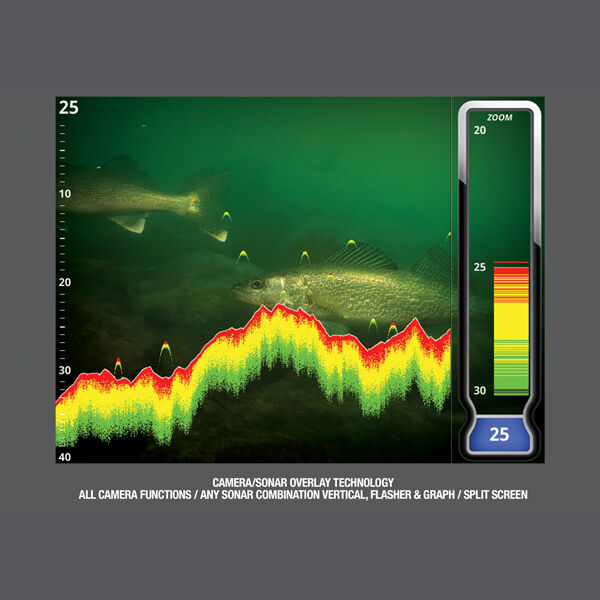

| ON SCREEN DISPLAY | (HUD) Heads-Up Display Camera/Sonar Overlay Technology All Camera Functions Any Combination of Vertical, Vertical Zoom, Flasher, Graph & Graph Zoom Split Screen |
| ADDITIONAL FEATURES | 300′ Dynamic Depth Capability, Infinite Scale from 10′ and Deeper in 1′ Increments Upgradeable Firmware Bottom Enhance Capability Exclusive Dynamic Depth/Range Exclusive Sonar Footprint Display Adjustable Scroll/Ping Rate Target Adjust Image Magnifier Adjustable Night-Vision Backlight Video Playback On-Screen |
Battery features & Specifications
| MODEL NO. | LP41210 |
| BATTERY TYPE | Lithium Iron Phosphate (LiFePO4) |
| VOLTAGE | 12.8 Vd.c. |
| AMP. HOURS | 10 AH |
| WATT-HOURS | 128 |
| MAX CHARGE CURRENT | 10-amps |
| PEAK DISCHARGE | 10-amps |
| TERMINALS | Standard F2 Spade Terminals (6.4mm or 0.25” wide) |
| LIFECYCLES | 2000 Full charge cycles |
| OPERATING TEMPERATURE | -29°C to +49°C |
| BMS PROTECTION |
Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection. |
| ESTIMATED RUNTIME* | 13 Hours Depending on Conditions |
| SIZE | 5-7/8″ x 2-1/2″ x 3-5/8″ Replaces Standard Lead Acid Battery |
| WEIGHT | 2 lbs. 11oz. |
*Runtime estimates are based on power usage with factory default settings. Changes in user settings like screen brightness can have a major impact on power draw and therefore runtimes. MarCum Technologies offer these estimates to aid in determining the size battery you need to meet your use case.
Weights & Dims
| PHYSICAL DIMENSIONS | 11.25″ x 11.25″ x 11.25″ |
| WEIGHT | 10.5 lbs. |
Accessories Included
| BATTERY | Rechargeable 12-volt 10-amp Lithium LiFePo4 Battery |
| CHARGER | 3-amp Hour Rapid-Charge Battery Charger |
| STORAGE | Deluxe Padded Red Soft Pack Camera Pack |
| CAMERA EXTRAS | Remote Camera Panner microSD Card |
| SCREEN PROTECTION | Snow Shield Faceplate |
| WARRANTY | Two Year System Warranty |
Manual for the MarCum LX-9L Digital Ice Sonar/Camera System
Download for Free! Click on link
LX-9L Manual
Quick Start Guide for the MarCum LX-Series Digital Systems
Download for Free! Click on link
LX-Series Quick Start Guide
Manuel en français pour le système MarCum LX-9L Digital Ice Sonar/Camera
Télécharger gratuitement! Cliquez sur le lien
LX-9 Manuel en Français
BMS Protection
Circuitry designed to prevent the battery from operating outside its safe operating levels. Includes: over-current & over-voltage protection, regulates operation during high & low temperatures, balanced charging, and short circuit protection.
Warnings
- Do not immerse the battery in water or sea water. Keep the battery in a cool dry place when not in use.
- Do not use or leave the battery near a heat source (i.e. heater, furnace, fire).
- Use the battery charger only as directed when recharging.
- Do not reverse the positive and negative terminals on the battery connections.
- Do not discard the battery in a fire, furnace, or other combustible space.
- Do not connect the battery directly to an electrical outlet.
- Do not short –circuit the battery by directly connecting the positive and negative terminals with metal objects.
- Do not directly solder the battery or pierce the battery with a nail or other sharp objects.
- If the battery gives off an odor, generates heat, becomes discolored or in any way appears abnormal during use, or while charging or discharging, immediately stop using it.
- If the battery leaks and the battery contents (electrolyte) gets into an eye, do not rub the eye. Instead, flush the eye(s) with clean water and immediately seek medical attention or it may result in injury to the eye(s).
- Do not use the battery in a location where static electricity or magnetic fields are great or it may result in damage to the battery safety devices.
- Do not leave the battery in high temperatures (i.e. in direct sunlight or in a vehicle in extremely hot weather) or it may overheat, and its performance will be degraded, and service life decreased.
- Tape the battery terminals prior to disposal to insulate them as discarded batteries may cause fire or explosion.
- Follow manufacturers instructions.
Marcum Technologies, the undisputed leader in ice-fishing-specific sonar, takes tech to the next level. Their long-held principle is that features are useless unless they help an angler catch fish, and that can be seen throughout decades of innovation. Patented technology like moveable zoom that led to angler’s ability to target fish anywhere in the water column was the first ping heard round the world among the ice sonar community. They followed it up with additional advancements to help distinguish echoes from noise in an interference rejection system so advanced, it’s also patented.
Marcum Technologies is a company built upon the sport of ice-fishing, bringing forth patented technology and exclusive features unprecedented in ice electronics. Though at MarCum, our mantra is that features for feature’s sake are worthless unless they put more fish on ice. For the last 20 years, MarCum has brought the bulk of fish-catching invention to the ice market, with a long list of patents, sonar-firsts, and innovations immediately copied by the rest of the industry. MarCum units are hand-built, one at a time, from a blank circuit board on up. All of those advancements have happened right here in the heart of the ice belt, meaning all Marcum sonars are American-made. Below is a list of this year’s systems, and what make them each the top-performing sonar in their respective classes.
From MarCum Technologies, the industry champion in ice electronics that serve the angler first, comes a new riff on established innovations. MarCum’s engineering feats have led the sonar space for decades, with a healthy list of patents to prove it. From Interference Rejection (IR) to moveable zoom, our advancements are translated to more fish on ice. A recent improvement comes in the form of a patented “light pipe” – a brushless system that provides razor-thin target returns that give anglers the ultimate in resolution and fish-catching clarity.
It could be the most common question found on internet forums, Facebook groups, and among the freshman class of ice’s newest anglers – “Sonar or camera?” Sounds like a simple question. Multiple choice even. The answer has always been straight-forward too, with most experienced anglers leaning towards a sonar first, then purchasing a camera to eventually fill in the knowledge gaps as needed depending upon their species of interest.
